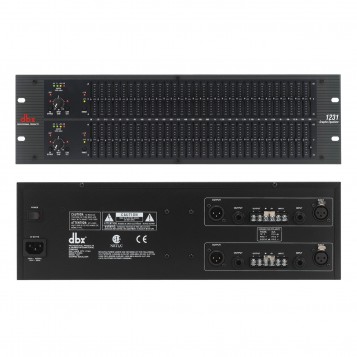

GIỚI THIỆU Equalizer DBX 1231
Features
- Switchable boost/cut ranges of ±6 or ±15 dB
- Electronically balanced/unbalanced inputs
- Servo balanced/unbalanced outputs
- RF filtered inputs and outputs
- XLR, Barrier Strip, and 1/4" TRS connectors
- -12dB/+12dB input gain range
- 18dB/octave 40Hz Bessel low-cut filter
- Chassis/signal ground lift capability
- Internal power supply transformer
- Power-off hardwire relay bypass with 2-second power-up delay
Specifications
| Input Connectors | 1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip |
| Input Type | Electronically balanced/unbalanced, RF filtered |
| Input Impedance | Balanced 40 kOhm, unbalanced 20 kOhm |
| Max Input | >+21dBu balanced or unbalanced |
| CMRR | >40dB, typically >55dB at 1kHz |
| Output Connectors | 1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip |
| Output Type | Impedance-balanced/unbalanced, RF filtered |
| Output Impedance | Balanced 200 ohm, unbalanced 100 ohm |
| Max Output | >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm) |
| Bandwidth | 20Hz to 20kHz, +0.5/-1dB |
| Frequency Response | <10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range |
| Dynamic Range | 109dB; 115dB |
| Signal to Noise Ratio | 90dB, 97dB |
| THD+Noise | <0.005% |
| Interchannel Crosstalk | <-80db, 20Hz to 20kHz |
| Bypass Switch | Bypasses the graphic equalizer section in the signal path |
| Low cut Switch | (recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter |
| Range Switch | (recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range |
| I/O Meter | 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu |
| Indicators | EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red) |
| Operating Voltage | 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz |
| Power Consumption | 24W |
| Power Connector | IEC receptacle |
| Dimensions | 5.25" H X 19" W X 7.9" D (13.4cm x 48.3cm x 20.1cm) |
| Unit Weight | 10.6 lbs. |
| Shipping Weight | 11.6 lbs. |
